Plotting theme for vimcheck

Source: R/plotting.R
plotting_theme.Rd

A simple plotting theme building on ggplot2::theme_bw().

Usage

theme_vimc(x_text_angle = 45, y_text_angle = 0, ...)

theme_vimc_noxaxis()

Arguments

x_text_angle

The angle for X-axis labels. Defaults to 45 degrees.

y_text_angle

The angle for Y-axis labels. Defaults to 0 degrees.

...

<dynamic-dots> Other arguments passed to ggplot2::theme(). These will be applied in addition to, or in place of, pre-existing elements defined by this theme. See the examples for this theme's appearance.

Value

A ggplot2 theme that can be added to ggplot2 plots or objects.

Examples

# using an inbuilt dataset
data(mtcars)

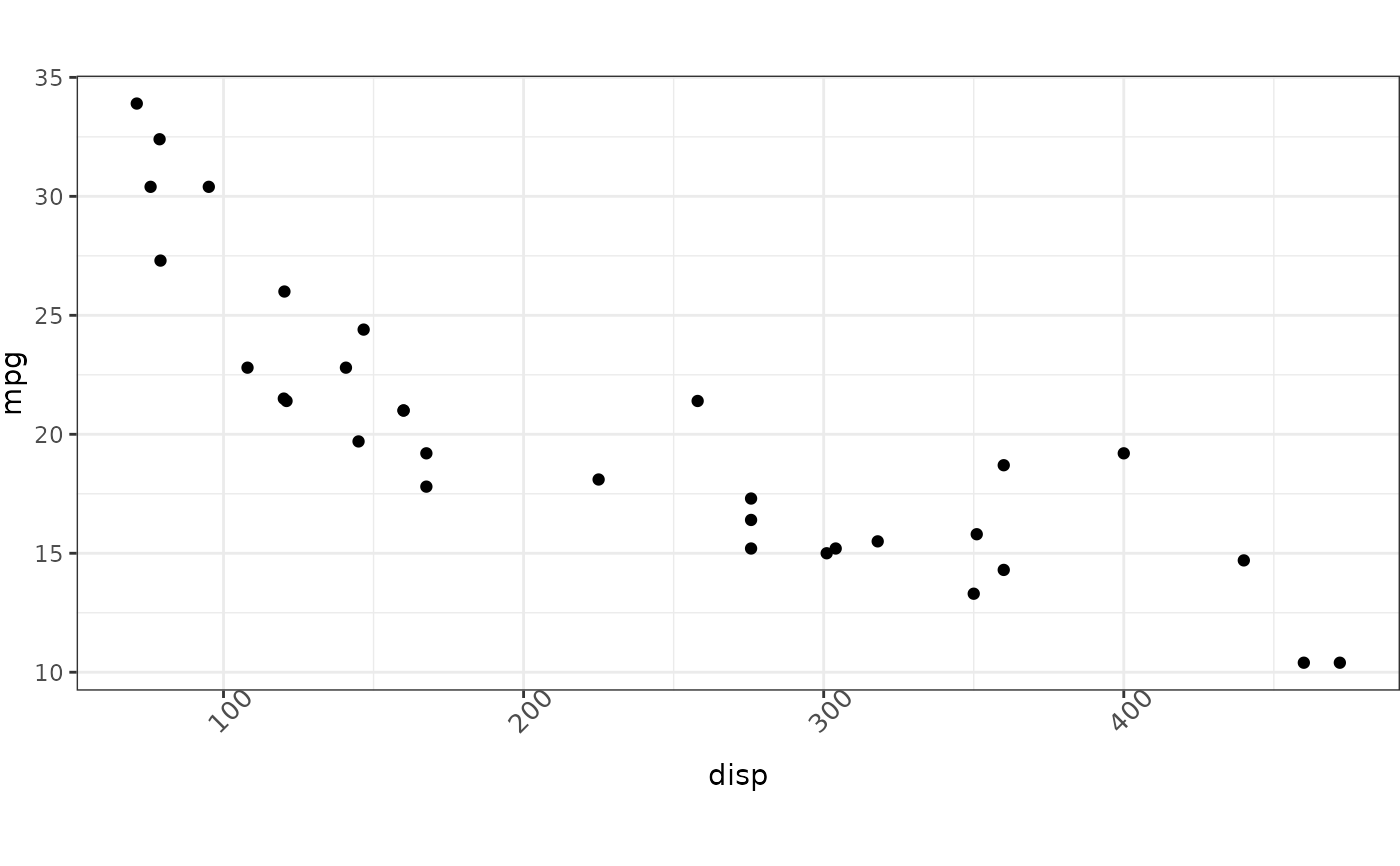

# standard theme
ggplot2::ggplot(mtcars, ggplot2::aes(disp, mpg)) +
  ggplot2::geom_point() +
  theme_vimc()

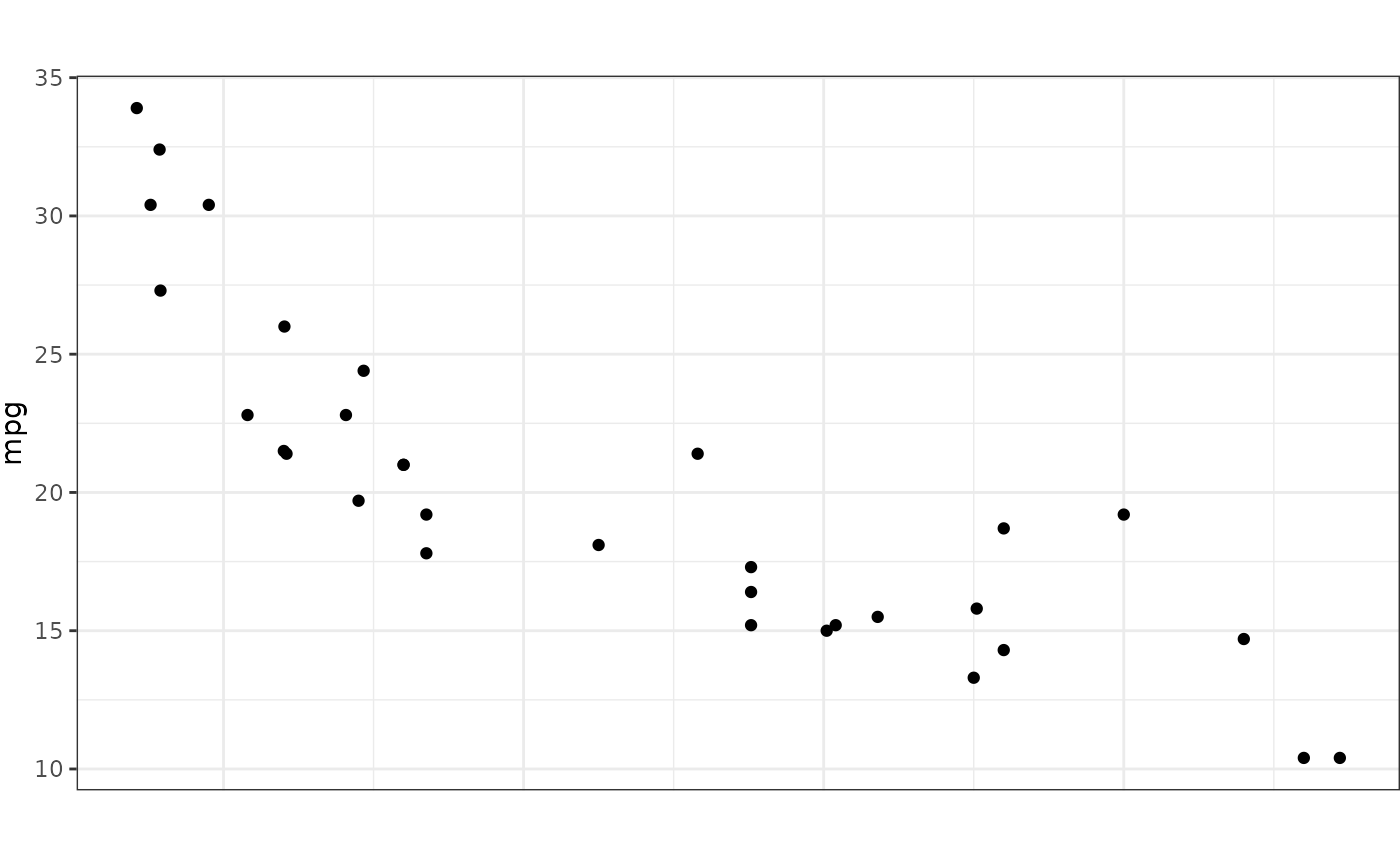

# with X-axis suppression
ggplot2::ggplot(mtcars, ggplot2::aes(disp, mpg)) +
  ggplot2::geom_point() +
  theme_vimc_noxaxis()
